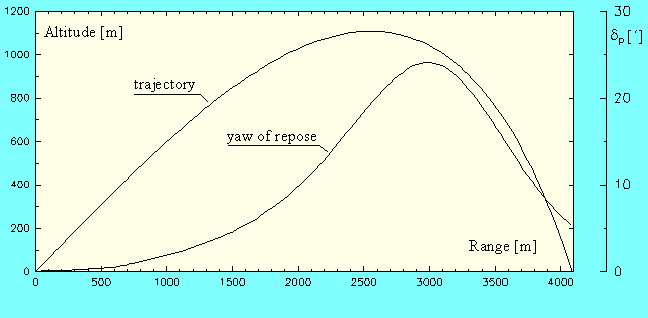

The yaw of repose angle of a M80 bullet (7.62 x 51 Nato) fired at 32°


The yaw of repose for a M80 bullet


Generally, the yaw of repose adopts a maximum shortly behind the summit. Although, for the example shown in the drawing, the yaw of repose never exceeds half a degree, the resulting side drift at impact almost amounts to 100 yd.
